Power

輸入電源

Power rated: 12KW (208-240V)

額定功率：12KW (208-240V)

Voltage

電壓

Voltage rated:  AC208-240V 50/60HZ

額定電壓： AC208-240V 50/60HZ

Working Temperature

工作溫度

Max. Temperature: 1100℃ ( 1 hr)

最高溫度：1100℃ (1小時)

Continuous working temperature: ≤1000℃

持續工作溫度：≤1000℃

Recommended heating Rate: ≤10℃/min

推薦升溫速率：≤10℃/分

Temperature Controller

控溫方式

PID automatic control and auto-tune function.

模糊PID控制和自整定調節

30 programmable segments for precise thermal processing.

智能化30段可編程控制

Built-in protection for the over-heated and broken thermocouple.

超溫和斷偶報警功能

Length of heating zone

加熱區長度

300+300+300mm

Length of constant zone

恒溫區長度

150+200+150mm

Heating Elements

加熱元件

Resistance wire, Fe-Cr-Al Alloy doped by Mo

電阻絲（摻鉬鐵鉻鋁合金）

Temperature Accuracy

控溫精度

+/- 1℃

Dimensions

尺寸

Tube size: Φ150/210/280*1400mm (optional)

爐管尺寸：Φ150/210/280*1400mm (可選)

Overall size: 1300*650*1000mm

外形尺寸：1300*650*1000mm

Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center. (Ceramic blocks must be fully inserted into the furnace chamber before heating).Quartz blocks also optional

兩個氧化鋁管堵阻擋管中心產生的熱輻射（氧化鋁管堵必須在加熱前塞進爐膛)石英管堵可選

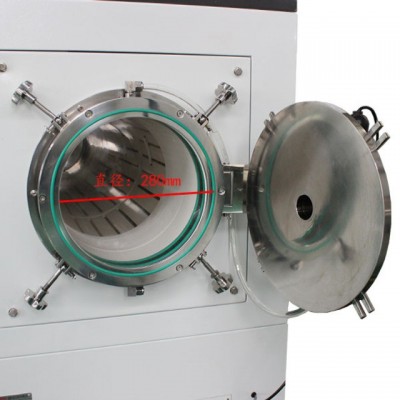

Vacuum Flange

真空法蘭

Folding flanges

兩端為折頁法蘭

Vacuum Pressure

真空壓力

133torr can be achieved by mechanical pump

機械泵可達133torr（1pa）

10^-6 torr can be reached by molecular pump

分子泵可達10^-6torr（10^-3pa）

Please click the picture below to order vacuum pump

點擊下列圖片訂購真空泵

Net Weight

凈重

250kg

Warranty

質保

One year limited warranty with lifetime support  (Such consumable parts as tube, quartz block, and O-rings, etc. are NOT supported by the warranty)

一年質保終身支持（消耗品如爐管，石英管堵，O型圈等不在質保范圍內）

Warning

注意事項

Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

在使用過程中爐膛表面可能出現細小裂紋。這是正常情況，裂紋可以用氧化鋁涂層修復。

Compliance

認證

CE Certified

CE認證

All electric components ( >24V) are UL / MET / CSA certified

所有電氣部件( >24V)都有UL / MET / CSA 認證

The furnace is ready to pass TUV (UL61010) or CSA certification at extra cost.

追加費用即將讓該款爐子通過TUV(UL61010)或CSA認證

Operation instructions

操作指導

Click to download the operating manual

點擊下載說明書
